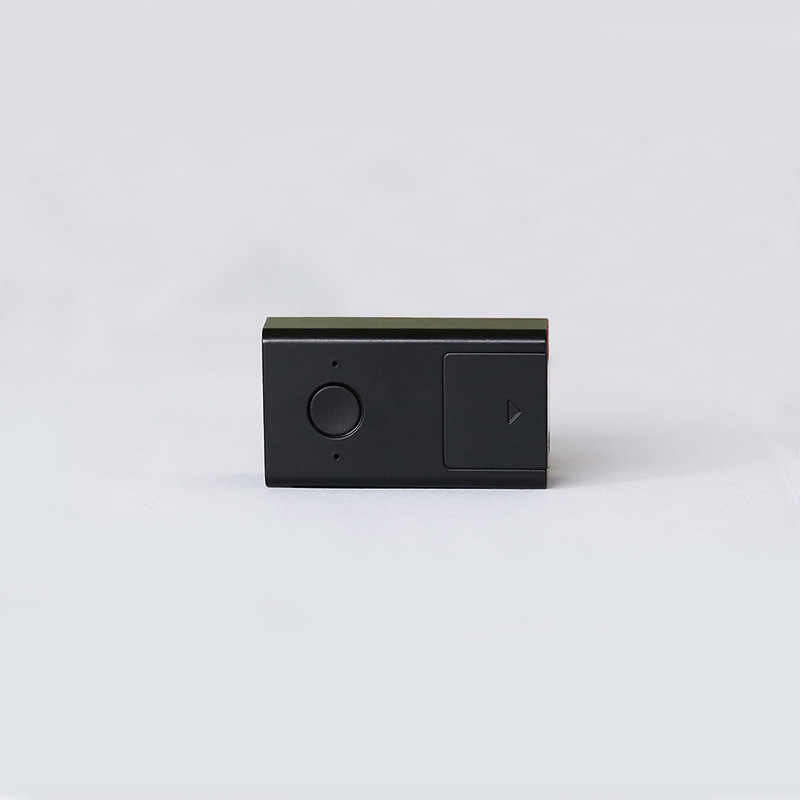

Mini GPS locator car motorcycle electric vehicle tracking locator N11 upgraded version with SOS key
1. Introduction this product uses the latest intelligent seven base station positioning system, which is more accurate and faster than the traditional single base station and three base stations. It adopts the latest V3 Google map and supports most countries. It has voice-controlled alarm function, small size, clear voice, long standby time, stable performance, easy installation; Mainly used for home monitoring, children, the elderly, pet supervision and monitoring, car, warehouse and other anti-theft tracking functions.
2. Technical parameters???? GSM band: 850/900/1800/1900???? GPRS:Upload60,TCP/IP???? Operating voltage: 3.4-4.2V DC???? Standby current: :& asymp;2.5mA???? Enable voice-activated current: & asynmp; 30mA???? Call current: & asymp;150mA???? GSM Positioning Time: 35 seconds???? Working environment temperature:-20 ℃ ~ +50 ℃???? Working environment humidity: 20% ~ 80% RH???? Appearance size: 41(L)X23(W)X14.5(H)mm
3. Charging indicator light description when the host is charged, the indicator light of the host will flash; When full, the indicator light of the host will be on. (Charger requirements: 5.0V current ≤ 2000 mA Apple and Samsung charger are OK)
4. Instructions4.1 boot: turn on the small lid on the device and insert the SIM card into the card holder to turn on automatically. When starting up, the indicator light will flash for a few seconds. After the indicator light goes off, cover the small cover and use it. Note: please use a SIM card with a better network signal of 2 G--GSM (for example, mobile) the terminal SIM card needs to enable Caller ID GPRS function is required for terminal SIM terminal SIM card PIN code is off
4.2 Main control number setting dial the SIM card number in the device with your mobile phone. After dialing the connection, you will hear the surrounding sound for about 20 seconds. Your mobile phone will receive the message "The main control number is set successfully", then you can hang up the phone. If you do not receive the "master control number set successfully" message, the master control number setting fails.
4.3 restore factory settings when the terminal does not work properly due to incorrect settings of the terminal, you can send an SMS command to restore the terminal parameters to the default settings of the terminal factory, try to restore the terminal to normal operation. factory# when the terminal receives this instruction, the terminal's setting parameters will be restored to the factory default value, and all previous manual setting parameters will disappear (including the Service center number, etc. will disappear) if the terminal is successfully restored to the factory settings, reply "restore out" factory set success Information
4.4 Location network link SMS query when you need to query the location network link information of the terminal device, you can send "url#" to the SIM card of the terminal device, and the terminal will reply to the location information of the last located network link. Command: url# example of location query SMS reply: battery=100%,http://minigps.net/loc.do? x=012743&y=10081&z=002564251&n=0&c=460&a=10136&e=4272&s=21&v=m1.0&l=ch_ZN&p=3 click the URL to view the Chinese location and map image location. You can also enter the map to view the location.
4.5 platform query support web page, Apple, Android query, open the URL _________________ cluster users please select account login, individual users please select ID number login, type the password to view the operation on the service platform4.6 emergency rescue settings and operations4.6.1 Setting SOS number to set the SOS number, you must send the following SMS message to add the SOS number through the main control number mobile phone: for example, set the specified number to the corresponding SOS number. sos1,13412345678# indicates that the first phone is set. sos2,13512345678# indicates that the second phone is set. sos3,13612345678# indicates that the third phone is set. If the SOS1 number is set successfully, the terminal replies "The first SOS number is set successfully!" Information.4.6.2 delete SOS number if you need to delete a specific number, you can send a message to the terminal to delete the specified specific number. sos1,d# indicates that the first phone is deleted. sos2,d# indicates that the second phone is deleted. sos3,d# indicates that the third phone is deleted.4.6.3 emergency rescue operation if you need help in an emergency, press the SOS button to trigger an SOS emergency help alarm. The alarm is sent to each pre-set SOS number by phone. If the SOS number is cyclically dialed, it can only be cyclically dialed twice at most when no answer is received. Note: The SOS Alarm function must be pre-set with the SOS number!
4.7 set the GPRS transmission and positioning data interval the default GPRS transmission and positioning data interval of the terminal is600 seconds, that is, upload a location to the platform server every 600 seconds data. To set the GPRS transmission positioning data interval, you can edit send GPRS timing setting command instruction format: upload, scheduled time (seconds)# timing time setting range: 60-180000 seconds example: upload,60# the example shows that the GPRS transmission positioning data interval is 60 seconds, that is, upload a positioning data to the backend server every 60 seconds if the setting is successful, the upload interval is set gong! The interval is 60.
4.8 voice control remote switch note: voice control is disabled by default.4.8.1 Use your mobile phone to send "1111" SMS to the SIM card number of the device. After the SMS is successfully sent, the voice control function is about to be enabled. Voice-activated command: 1111 if the voice control is enabled successfully, the message "voice control is enabled successfully" is returned.4.8.2 use your mobile phone to send "0000" SMS to the SIM card number of the device. After the SMS is successfully sent, the voice control function will be turned off. Voice control shutdown command: 0000 if the voice control closes the setting successfully, reply to the message "voice control closes the setting successfully".
4.9 voice-activated sensitivity setting when the voice-activated sensitivity of the device is not satisfied with you, you can send a text message to adjust the voice-activated sensitivity of the device. When the device leaves the factory, the voice control sensitivity value is 83 by default. Command format: level, sensitive value# sensitivity value setting range: 30-100. The higher the sensitivity value, the more sensitive the device is. Example: level,83# the example shows that the voice-activated sensitivity value of the device is set to 83. If the voice-activated sensitivity is set successfully, the voice-activated sensitivity is set successfully! Sensitivity is 83 "information
4.10 terminal restart function when the terminal is working abnormally, for example, if the terminal is not located, you can send a text message to the terminal. In order to enable the terminal to perform a remote restart so that the terminal can resume normal operation. Terminal restart setting instruction: reset# when the terminal receives this instruction, restart the terminal immediately. If the terminal restart is set successfully, reply "restart successful" information
4.11 query parameters when you need to query the parameter setting status of the terminal device, you can write a "param#" SMS message to the SIM card number of the terminal device, and the terminal will reply to the corresponding parameter query content. Example: param# sample information returned: imei:386201209006236 apn:cmwap IP:usa.gpsjm.com:8500 UPLOAD:1800 CENTER:12345678901 LEVEL:80 LANG:EN ZONE:E8
4.12 View software version number view the software version of the current device command: verno# example: N12-V1.0 2016/07/20 18:00
5. Precautions:* The new machine should be fully charged before use to achieve the best effect.* Charger standard: ± 5.0V current ≤ 2000MA to avoid damage to the host* When installing, please pay attention to the signal strength of GSM network. Do not install it in places where there is no signal or the signal is weak, so as not to affect the use effect or cannot be used.* The light is not on, the battery is out of power, after charging, use again* Can't make a phone call, re-insert the card and turn it on or charge it before testing* Do not answer automatically, re-insert the card to boot
