Jz-2002 Intelligent digital display portable inflator pump
1. material quality
①Shell：PP
②air cylinder：Aluminium alloy
2. Product parameters
① This product is a portable air pump, suitable for tires of small cars, motorcycles, bicycle, balls and other entertainment and travel supplies.
② This product adopts digital circuit, containing digital chip made in Taiwan famous factory .
③ The tire pressure can be preset, and no data will be lost when power is off.

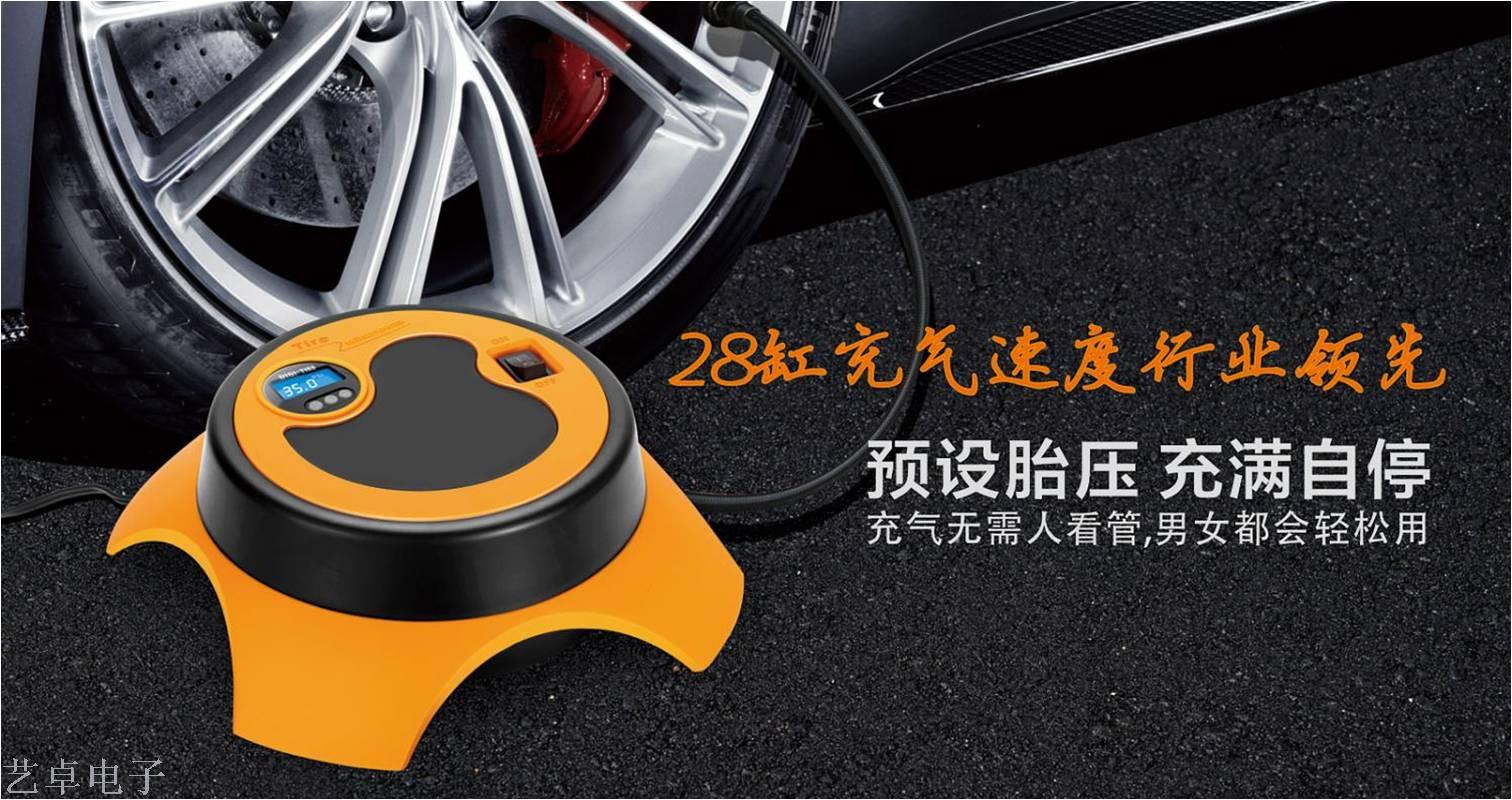

④This product adopts the preset tire pressure and it will automatically stop inflating when being inflated to the preset air pressure.
3.Product parameters
①.Motorvoltage: 12V DC
②.Max.current consumption: 10 A
③.1nflating speed: Inflate 195/65R15 tire from 0 to 35 psi Within 4.5 minutes.
④.1nf1ating range: Max 50PSi
⑤. Tire gauge accuracy: 35±3psi
⑥. Length of power line: 3000+100mrn
⑦.Length of air hose: 600+50mm
⑧.Working temperature: -20℃-60℃
⑨.Dimension: 220x220x75mm
⑩.N.W.: 0.85KG G.W.:O.95KG
⑾4 units available: psi,bar,kpa,kg/C ㎡
Note: unit conversion
1 bar = 100 kpa
1 KG/C ㎡ = 14.2 PSI
1 psi = 6.89 kpa
1 psi = 0.07 KG/C ㎡
4. Packing data (single color box packaging)
①ITEM NO: 2002
②QTY: 10 PCS
③N.W.:10 KGS G.W.:11 KGS
④Dimensions :43.5*23.9*46.8CM
⑤Product size :220*220*80MM

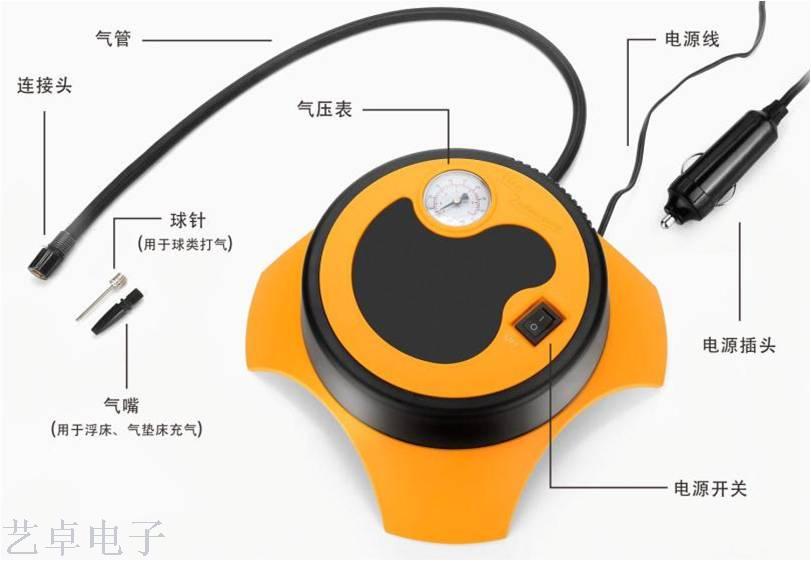

5. Graphic details
Common fault treatment method V Turn on the power switch and the machine won't start, 'nspection methoty Check whether the power cord is Intact and connecfion is rel.able Check whether the power supply is energized, and whether the cigarette plug plugged jn properly and in place. Check fusing if the machine equipped with fuse, 2. The machine is operating normally and the pump can not inflate the article. Inspection method: Check whether the air hose is intact and connection reliable. Check whether the air hose is bend, and whether the connection has air leakage Check whether the sealing ring in the connection is out. Remark: If any of the above problem is found, please turn to the professional repair Shop to repair it.
