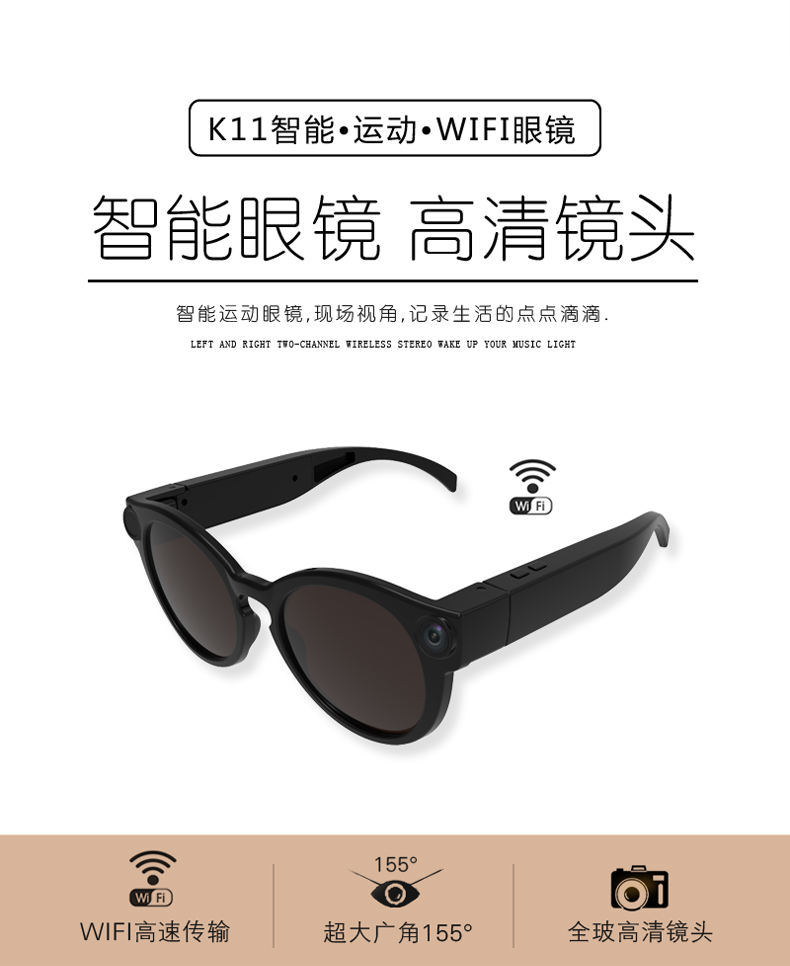

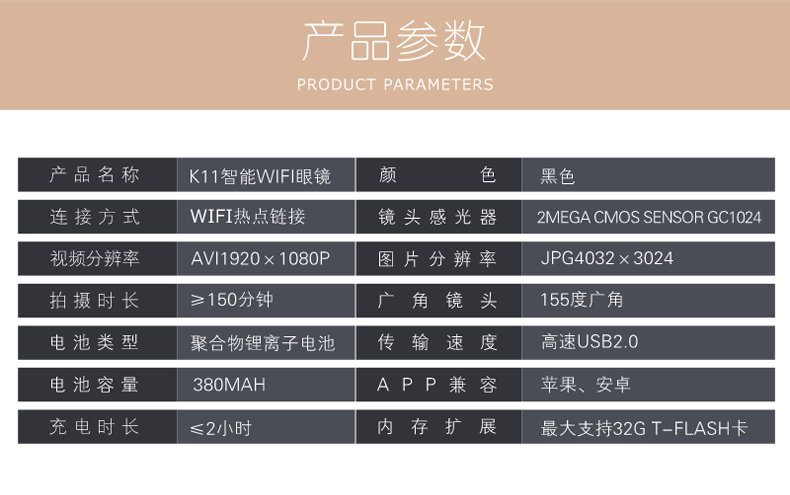

Product Features
● high quality image HD FULL WIFI 1080 P DV DC
● built-in large capacity lithium battery sustainable camera150 minutes
● WiFi hotspot, real-time video transmission
● the video format is as follows: AVI1920×1080 P
● the photo mode is as follows: JPG4032×3024
● high-speed transmission USB 2.0 interface

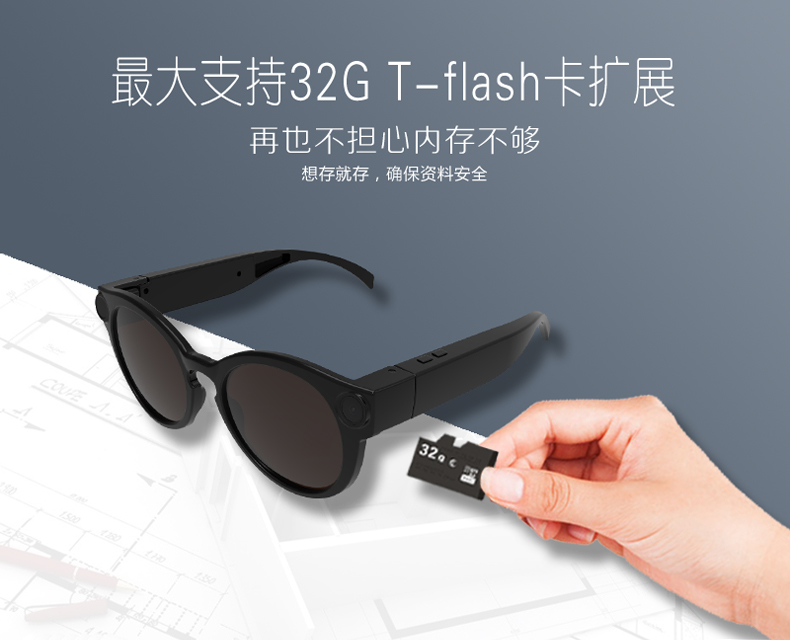

● maximum support32g T-flash cards
● 155 degree wide angle lens
● supports loop Video

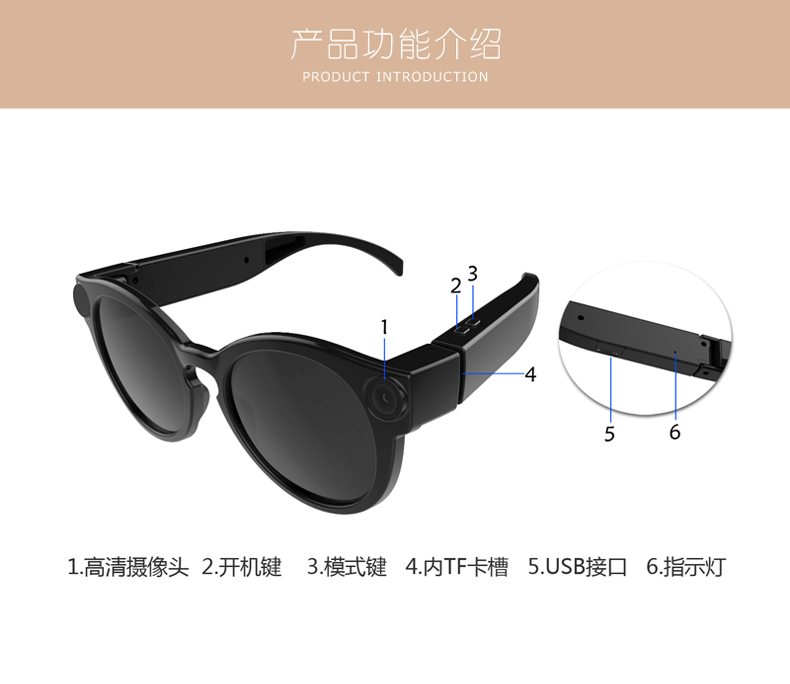

Operation Guide
L indicator light
(1) red Light: standby/ recording function indication , red light flashes once take photos, red light always on standby mode, red light flash video mode, red light slow flashing infrared light enable.
(2) blue light: WIFI indicator light, the blue light is always on WIFI the function is turned on or connected, and the blue light is flashing and transmitting images.
(3) no card: WIFI off the case, the red light blinks for 5 times and then shuts down. When WIFI is turned on, the red light blinks. The blue light is always on.
(4) yes card: WIFI off and standby red Light bright, 60 seconds without any operation will automatically shut down.
(5) low electricity: blue light off, turn off the red light after 2 seconds.
L switch on/off: long press power button turn on the red light, yes card red light flashing always bright after one time, None card red light flashing. In video recording or standby mode, long Press boot key, red and blue lights are on after 2 seconds, the machine will shut down. Save the video file before shutting down the video..(When starting up enabled by default WIFI blue light is always on, at this point system positive in initialization, system initialization please wait5 seconds operation again)
L take photos: in standby mode, press boot key red light flashing once taking photos1 zhang, automatic save return standby.
L video recording: in standby mode, press mode key red light fast flash into video mode, short press again mode key stop recording and return standby mode.
L APP download: Android mobile phone or Tablet PC in android Market, baidu mobile phone assistant, google Play store Search" SPORTS DV" download. iPhone mobile phone in App Store search" SPORTS DV" download. Also scan manual or download and install the QR code on the outer box.
