Packaging information
CTN Szie: 40 × 30 × 30 cm
G.W./CTN:9 kg
QTY/CTN:48 set/carton

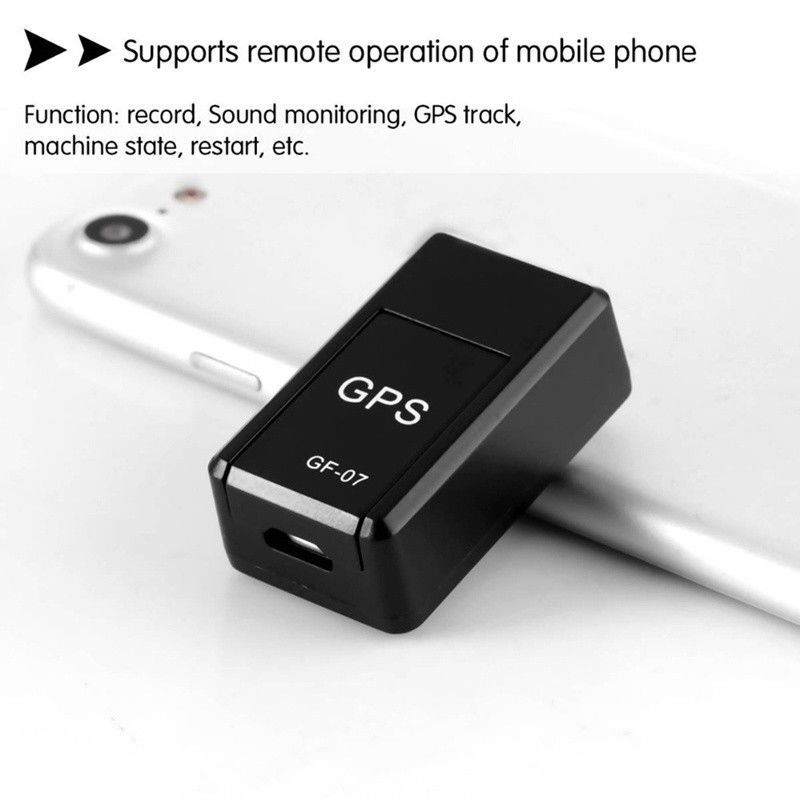

No matter the alarm locator is placed in the car, in kids' schoolbag, in the pocket of the elderly, or in valuables bags, you can send a mobile phone SMS command to the alarm locator through your mobile phone to query the location of the alarm locator, which is convenient for you to monitor the whole process, grasp the location of the target in real time.
Method of use:
1. Preparation: A SIM phone card and a mini memory card,
2. Power on: open the card cover and insert the SIM card in the direction indicated. After inserting the mini memory card, the product will automatically turn on the red light and turn off four times, and enter the normal standby state after 30 seconds. [Note that if you do not read the memory card, insert it again]]
3. Indicator light: the power-on indicator light is always on and off for 4 times, and the low-power indicator light flashes quickly.
4. Bind the main control number; Edit the SMS message 000 with the mobile phone and send it to the alarm locator number. Later, the machine replies to the mobile phone with a text message; Set; Bind + Main Control Number
5. Separate recording; Edit the SMS 555 with your mobile phone and send it to the alarm locator number. Later, the machine replies to a SMS message from your mobile phone; [Snd; Recording has started]]
6. Voice-controlled callback; Use the mobile phone to edit the SMS 666 and send it to the alarm locator number, and later the machine will reply to the mobile phone a SMS message; [DT; Sound monitoring has been successfully set, alarm call callback]],.
When the sound around the alarm locator is greater than 40dB, the alarm locator will automatically call the preset mobile phone number.
7.GPRS positioning query: use the mobile phone to edit the SMS 777 and send it to the alarm locator number. Later, the machine will reply to the mobile phone with a Google map link of Chinese geographic location and, after the mobile phone opens this link, it will site to appear map and text address descriptions to make the location more accurate.
8. Sound query around the product: directly dial the number of the alarm locator median Brown. After a few seconds, you can hear the sound around the alarm Locator (the alarm locator itself does not make any sound and light during the query)
9. Locate the track query; Use the mobile phone to edit the SMS 102 and send it to the alarm locator number. Later, the machine replies to the mobile phone with an [account number, password] and logs on to the website http;// gpsui.net
10. Locate and track from time to time; Operate on the computer platform.
11. Delete the memory card content; Use the mobile phone to edit the SMS 445 and send it to the alarm locator number. Later, the machine replies to the mobile phone with a [TF, which is cleared successfully and currently has capacity]]
12. Host status; Edit SMS 888 with mobile phone and send it to the alarm locator number. Later, the machine replies to a SMS message from the mobile phone; [all functions of the host are on or off battery capacity binding number, signal strength, startup frequency, GPRS TF card capacity, etc.]].
13. Restart the host; Use the mobile phone to edit the SMS 999 and send it to the alarm locator number, and wait for 1 minute to recover successfully.
14. Turn off and the information has the function of displaying and stopping the remaining power; Use the mobile phone to edit the SMS 444 and send it to the alarm locator number. Later, the machine replies to the mobile phone, [Reset; All tasks have been canceled]]
15. Electricity query: there is electricity in the information you reply every time you locate,
{This product can also provide external smoke feeling alarm door magnet shoes schoolbag water Cup and other products and suggestions that need to be added or customized, please contact the distributor}
1. Appearance size: 3.5cm * 2.0cm * 1.4cm(L * W * H)
2. Charging input InputAC110-220V50/60Hz
3. Charging output: Platinum 300-500mA
4. Machine battery: 3.7V 400mAh Li-ion battery
5. Standby time: 12 days. Working hours 4-6 days
6. Expansion card; Mini TF card
9. Continuous calls: 150-180 minutes
10. Network system: GSM/GPRS
11 .. storage temperature: -40°C to +85°C
12. Operating temperature-20 ° Cto +55°C
13. Humidity range: 5% -- 95% non-conforming
14,GPRS:Upload60,TCP/IP
15. Operating voltage: 3.4-4.2V DC16 standby current: :& asymp;2.5mA17. Enable voice-activated current: & asynp; 30mA18. Call current: & asymp;150mA 19. GSM Positioning time: 25 seconds
basic parameters: band GSM850/900/1800/1900MHz
supporting countries: China, UK, France, Germany, Netherlands, Italy, Portugal, Brazil, Denmark, Russia, Poland, Turkey, Hungary, Thailand, Greece, Indonesia, Malaysia, Vietnam, Myanmar, Pakistan, Iraq, Saudi Arabia, United States, Kazakhstan, Outer Mongolia, Dubai, etc......
Common problems 1. The host cannot be connected
answer: You must insert the SIM phone card and turn on the phone to enable the phone signal, so you only need to turn off the machine and turn on the phone again. Also, your mobile phone card is not on the server and there is no signal.
2. TF memory card cannot be stored?
A: first check whether the TF memory card is incorrect. If the TF card has no problem, format the TF memory card and try again.
3 cannot be charged?
A: To charge, you must plug in the GSM card. If there is no way to charge.
4 What is the main control phone?
A: It is the mobile phone that you need to use to monitor the burglar alarm.
Special warning: when the power of the alarm locator is insufficient (the power is less than 5%), please charge it in time. If the battery is in the state of power loss for a long time, it will inevitably cause deep discharge of the battery, the battery performance and life are affected. In serious cases, rechargeable battery of the battery will not be charged or discarded. If the alarm locator is not in use, please charge the battery to 60%-80%, disconnect the power supply of the locator, and store it, for a long time (three months), please replenish the locator regularly to protect the battery. For better use of this machine, please read carefully and operate according to the above. Thank you.
Matters needing attention:
- to achieve a more accurate position, we recommend that you use a mobile SIM card and confirm that GPRS is enabled (if you send a DW SMS reply, no traffic will be generated, if you send DT or DT3 to query on the map, you need to activate GPRS monthly rent first and need traffic. If some of the cards I just bought need to find the signal the next day.
- Use SIM card, try not to save too many text messages, especially if they are full, so as not to affect the function.
- The new machine should be fully charged before use to achieve better results.
- The light is not on and the battery is out of power. Use it after charging
- can't make a phone call, re-insert the card and turn it on or use it after charging
- do not answer automatically, insert the card again
- confirm that the caller ID function is available. Do not enable the call transfer function.
- Confirm that the PIN code of the card is turned off (that is, do not enter a password when you put it in your mobile phone)
- charge well and then use it. It is forbidden to use the machine easily during charging. It is better to take out the mobile phone card after charging.
