Location query / trajectory query query / voice / power callback / emergency / electronic fence
The biggest advantage:
1, voice dial back, double mic, IC independent voice control, high sensitivity. 2, positioning platform free life platform fee, a purchase, lifetime use, special maintenance, updating the database. 3, double platform positioning services, according to regional differences, choose the right platform. Exempt from worries. 4 , high capacity polymer battery independent custom, longer standby. 5, escalating follow-up software, more humane, more cost-effective. 6, can be customized for different customers with different requirements. Can apply for their own logo.
URL / check listen: normal boot, dialing machine, open wait 10 seconds to check heard the machine around the position within 10 meters of the voice. Hang up before connecting to the hang up or not connected before, will return to a machine the current position of the URL link. It is suggested that the first use of the first time to use the time to put on.
Query: users edit letters "DW" to the machine, a minute or so will reply to a text / url, etc.. Mobile phones and computers can log in to view the location of the link.
Platform query: (only authorized users can access password login platform)
Authorized numbers can be used to authorize SMS in the device ID number and password to log in to provide the URL query background information. (can query the machine position, electric quantity inquiry, track the inquiry, omit the short message, the electronic fence, adding equipment and so on function. Can also log on to the http://e5ex.com download Android version to your Android phone to see. Any mobile phone can send "DW" to the device to install the phone card, which is located on the short message. After the authorization operation, only the authorized number
Code to send the DW message positioning, other numbers can not be located.
1, authorized operation
Send text messages SQ+ need to authorize the phone number to the device, can be authorized to the number of the number. For example: send SMS "SQ13612345678" to the device, will be the number 13612345678 authorization. If you need to set up a number of authorized number, number can be separated by the number, such as "SQ13612345678*13600000000" the method can not exceed 4 of the number of mobile phones. After the authorization is successful, the authorized number will receive the following confirmation message: "XXXX, XXXX, http://e5ex.com/u/XXX," is a number, such as the need to increase the number of other authorization must be used to send the above command has been authorized to succeed.
2, clear authorization
Use any number to send text messages SQ to the device, then perform the operation to remove all the authorization number, the number of authorized number received system reply confirmation message is indicated to clear the success. After the removal, any mobile phone can SMS positioning.
3, the trajectory of the query (GPRS traffic, not more than 30M per month) is closed by default state
Turn on the monitor: DKJK off monitor: GBJK
Voice dial back: using a mobile phone or a fixed telephone alarm through the SIM number, hear the sounds around 3 seconds, hang up the success of that set. When the alarm is 10 meters 45 decibels, the alarm will automatically dial the number set. Factory defaults to off.
Voice dial back open: 1111 voice dial back off: 0
SOS: edit the text content of the capital letters "SOS" to alarm, set directly above by SOS button for three seconds alarm back directly to call the number binding.
Working frequency: GSM850/900/1800/1900MHz
This product uses the latest technology in Taiwan, with small size, clear voice, long standby time, simple operation, stable performance, easy to install and so on. Mainly used for home monitoring, children, the elderly, pet care, supervision function, automobile anti-theft tracking warehouse etc.. )

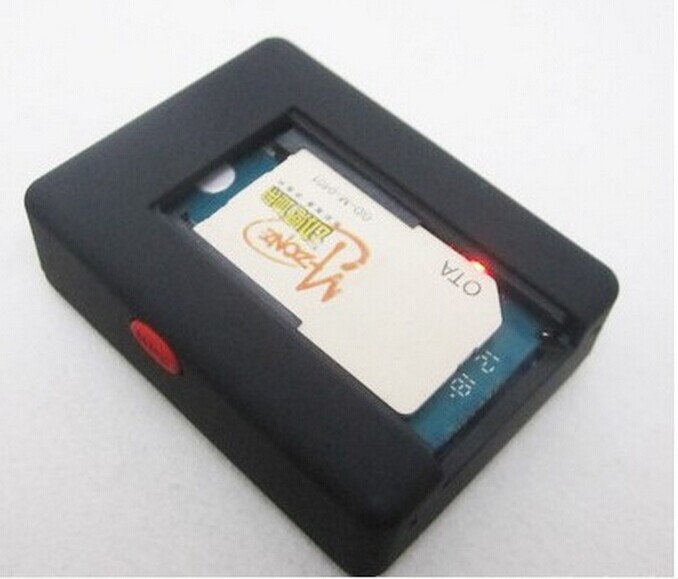

On / off: open the rear cover, put the SIM card into the deck automatically boot. Boot, the indicator light for 10 seconds, until the lights go out, cover the lid can be used. When not in use, directly to the card out.
Check listen: normal boot, dial the alarm number and connect wait five seconds to check heard the machine around the position within 10 meters.
Voice callback: mobile phone or fixed phone through the alarm in the SIM number, hear the sounds around 3 seconds, hang up the success of that set. When the alarm is 10 meters 45 decibels, the alarm will automatically dial the number set.
1111- voice open 0000- voice off
Lbs positioning: user editing an uppercase "DW" (foreign users please edit "GPS") to the alarm, a minute or so will return a containing the address / longitude and latitude / site content information.
SOS emergency call: edit message content uppercase letters "SOS" to alarm, set directly above by SOS button for three seconds alarm back directly to call the number binding.
Working frequency: GSM850/900/1800/1900MHz
Standby time: using voice, standby 5-7 days; no voice, standby 12-15 days.
Note:
1, the new machine before use to full power, in order to achieve the best results.
2, standard: 5.0V 500MA charger, so as not to damage the host.
3, installation, please note that the GSM network signal strength, do not install in the absence of signal or weak signal, so as not to affect the use of results.
4, the lamp is not bright, the battery is not charged, after charging, and then use.
5, the phone card, re boot or charging after testing.
6, automatic answering, re boot card.
7, do not return information, please check the SIM card has no arrears, check the SIM card message is full, empty and try again.
8, the need for other anti-theft function of the user can contact the seller directly customized.
9, this product is strictly prohibited for illegal purposes, the consequences of self.
