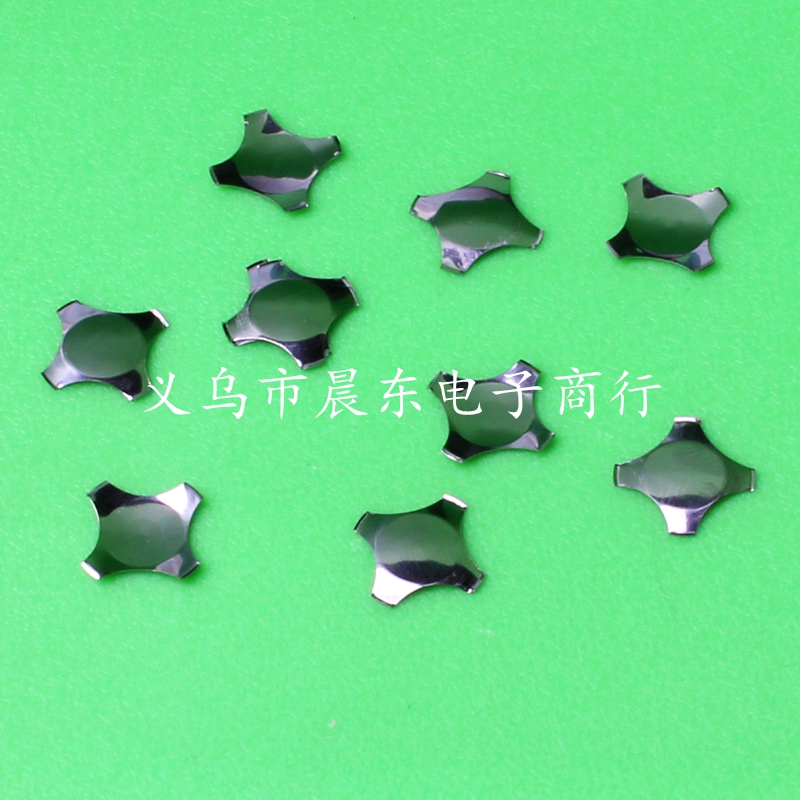

Factory direct litters cross l m-type membrane switches

"Product name": Woh Chai cross l m-type membrane switches

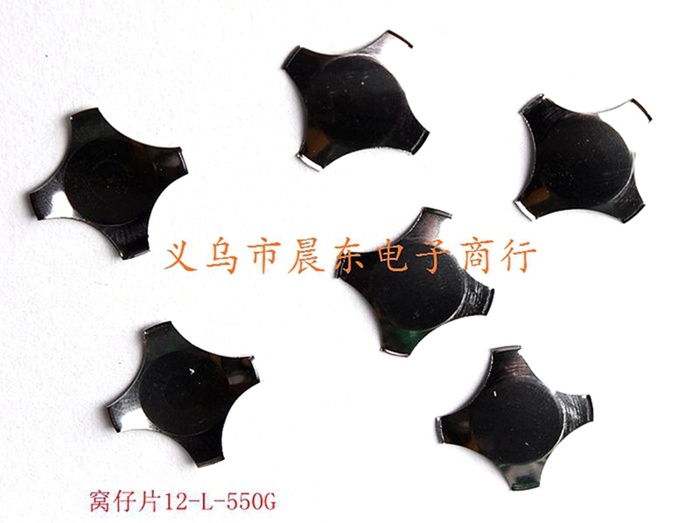

"Product": 10-L m -450G, 12-L m -550G

"Product":

"Material": a thin (thickness 0.05mm-0.1mm) imported stainless steel SUS301/SUS304

"Color":

Litters with the ultra-thin (0.05mm-0.1mm thickness) made of stainless steel, is a kind of switch, with good conduction cable and feel, thanks to the spring rebound, to provide haptic feedback to the operator. Strong Continuity, resilience and stability, texture and taste, ultra long life advantages.

Working principle: when it is pressed, and shrapnel center point contact PCB Board to form a loop, current passes through.

Material: stainless steel SUS301/SUS304

Products shape: triangle, circle, cross-shaped, oval, irregular shapes, and so on. (Can be customized to map-like mold)

Product specifications: diameter of 3mm--16mm and load 80g--650g (error: +/-25 g)product features: low contact resistance, oxidation resistance and wear resistancerequirements of environmental protection: compliance with Rohs requirements

Operating life time: 500,000-1,000,000 time.

Product advantages:

1. corrosion resistance strong; 2. resistance to high temperature and high pressure; 3. good sealing performance; 4. convenient installation; 5. fastening and durable, long life.

Mainly used for rigid printed circuit boards and other boards in membrane switches, such as cell phones, telephones, CD/VCD/DVD, radio, digital cameras, MP3/MP4, gaming devices, electronic dictionaries, and so on.
