Tianwei laser pressure regulating spot-welder
TW-JW100
i. Principle
jewelry laser welding machine it adopts ergonomic design and is suitable for jewelry laser welding industry. It has professional appearance design, special microscope observation system equipped with cross cursor, and high-speed electronic filtering device, which can protect the eyes of operators. The high-power beam expansion system can obtain finer light spots and meet the requirements of fine laser spot welding. The whole machine is compact in size, convenient to carry, and the operation process is simple. The welding effect is good, the equipment is stable and reliable, and the failure rate is low.

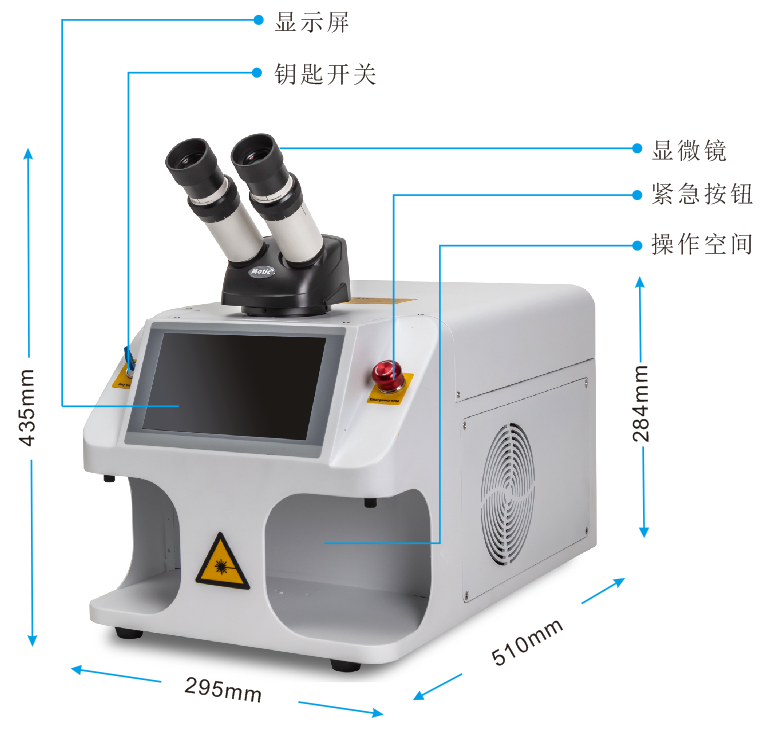

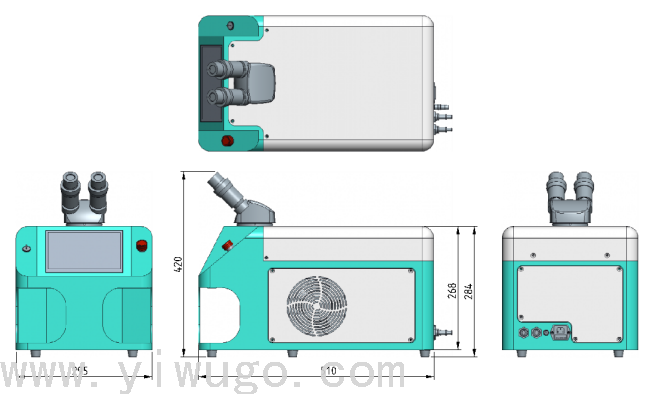

II. Appearance and size of the whole machine:
III. Technical parameters of the whole machine:
|
laser wavelength |
1064nm |
|
maximum laser power |
60W |
|
maximum laser pulse energy |
40J |
|
pulse width |
0.1-10.0 ms |
|
pulse frequency |
1. 0-15.0Hz adjustable grading |
|
aiming and positioning |

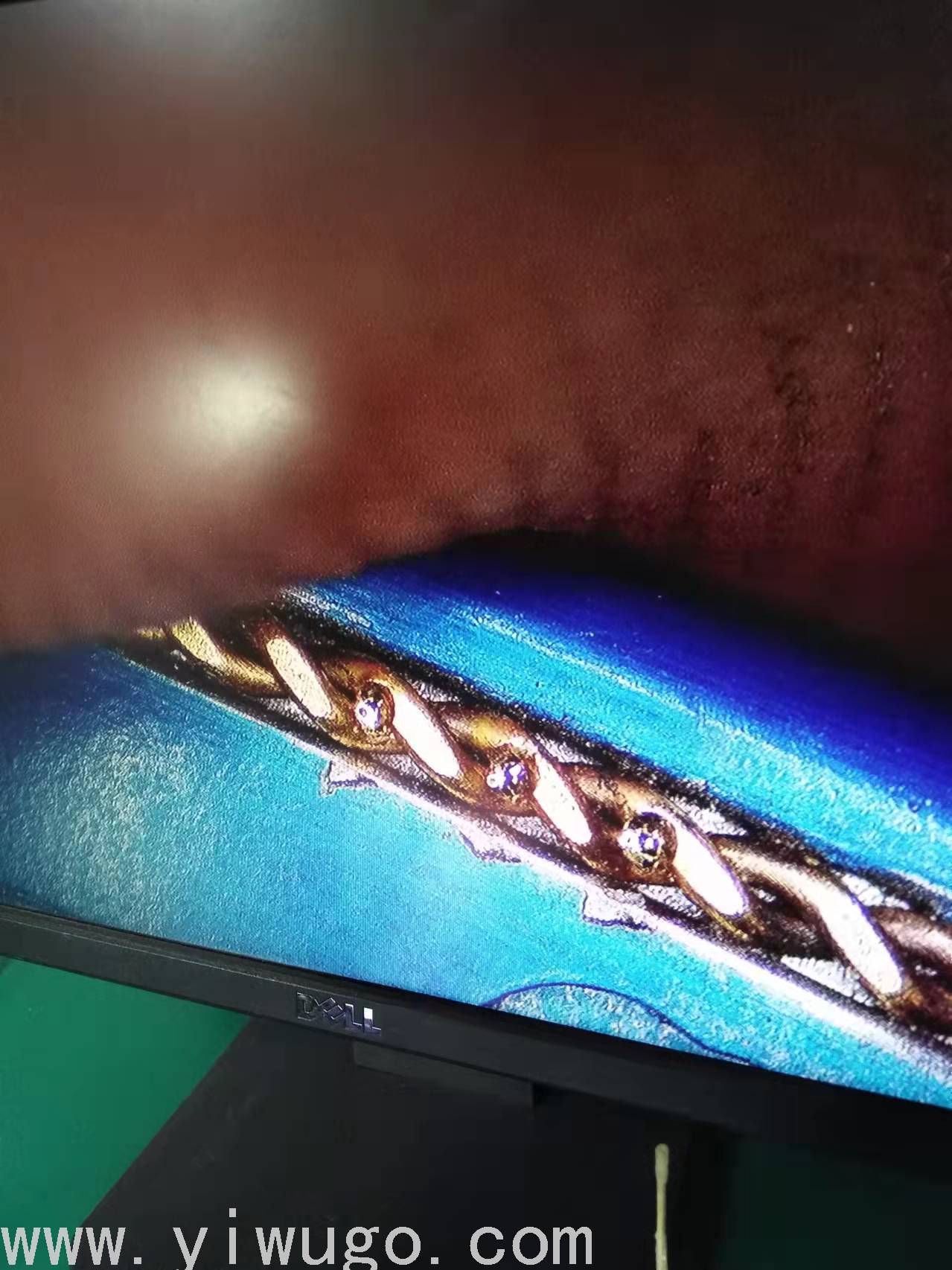

microscope+ CCD camera system |
|
adaptive welding |
welding and repairing all kinds of metal jewelry |
|
host Power consumption |
≤ 2KW |
|
power demand |
220V ± 5% ,50Hz |
|
cooling mode |
water circulation air cooling |
|
host dimensions(Length * width * height) |
510 × 295 × 420mm |
|
weight of the whole machine |
28 kg |
|
ambient temperature |
≤ 30 ℃ |
